Electric Patroling Car
|
|
| Model No.︰ | BWEV6061 |
| Brand Name︰ | Bowell |
| Country of Origin︰ | China |
| Minimum Order︰ | 3 pc |
|
|
|
|
|
|
|
|
Model
|
EV 6061
|
|
|
|
|
Motor
|
4 KW ,Series
|
|
Controller
|
Curtis 1204M
|
|
Battery
|
8 pcs Trojan T-105+ 225AH (48V)
|
|
Delivery Term
|
FOB SHANGHAI
|
|
Period of Validity
|
60 Days
|
|
Payment Terms
|
T/T
|
|
Minimum Order
|
One Unit
|
|
Quantity Per Container
|
20”: 1
|
40”: 3
|
40H”: 3
|
|
STANDARD FEATURE
|
|
Steering
|
Rack and pinion steering system + polyurethane steering wheel
|
|
Front Suspension
|
independent suspension coil spring with drum hydraulic shock absorbers
|
|
Rear Suspension
|
Laminated leaf springs non-independent suspension with drum hydraulic shock absorbers
|
|
Brake System
|
Four wheels hydraulicdrum brakes with parking brakeby foot
|
|
Chassis
|
Integral type high Strength Structural Steel , + Spray plastics antirust treatment
|
|
Light system
|
Front headlight ,Turn Signal Lamp, combination tail lamp
|
|
Body
|
Steel framework + fibre glass
|
|
Tyre
|
225/55b12 ,tubeless tyre
|
|
Overall Dimensions
|
3885 Lx1400 W x1800 H mm
|
|
Minimum Ground Clearance
|
140mm
|
|
Wheel Base (Front/Rear)
|
1150/1140
|
|
Net Weight (include batteries)
|
1000kgs
|
|
Max. Loading Weight
|
≤800kgs
|
|
Max. Speed
|
30 ~ 35 km/h
|
|
Braking Distance
|
≤4.0 m
|
|
Minimum Turning Radius
|
≤5.5 m
|
|
Max. Climbing Capability
|
25%
|
|
Range (Loaded)
|
80 ~ 100 km
|
|
|
|
|

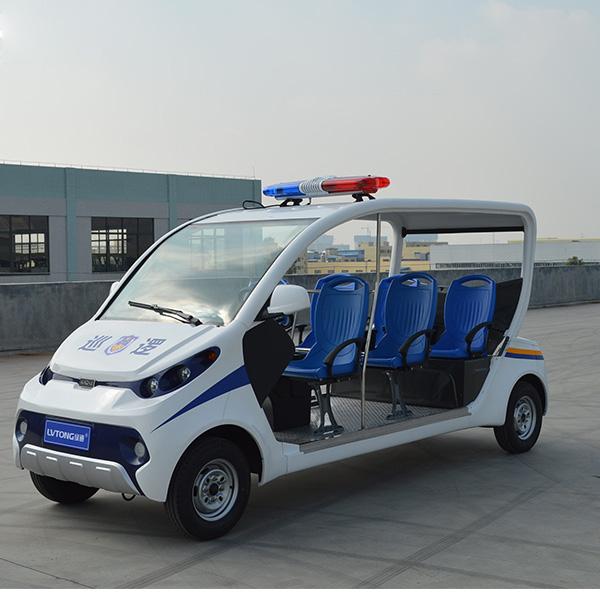

Product Image
|
|
|
